Name: Spring 2024 Alert: Exclusive TrueFlame Pro Series Linear Flat Fire Pit Pan And H Burner Kit - TPSI Available at Fire Pit Shop.
SKU: LOF-6010PS506TPSI-P
Price: 95.99 USD
Availability: InStock

Manufacturer: TrueFlame
Part Numbers: LOF-3610PS306TPSI-N, LOF-3610PS306TPSI-P, LOF-4810PS406TPSI-N, LOF-4810PS406TPSI-P, LOF-6010PS506TPSI-N, LOF-6010PS506TPSI-P
eFireplaceStore Item Number: TRU-LOF-3610PS306TPSI-N

Features

Color: Stainless Steel
Size: 36 Inches, 48 Inches, 60 Inches
Dimensions: 36″ W x 10″ D (3610PS306), 48″ W x 10″ D (4810PS406), 60″ W x 10″ D (6010PS506)
Manual battery spark ignition
Choose from natural gas or propane
Brass burner and stainless steel pan
Safety feature closes gas valve when flame extinguishes
Individual injectors eliminate need for main burner orifice

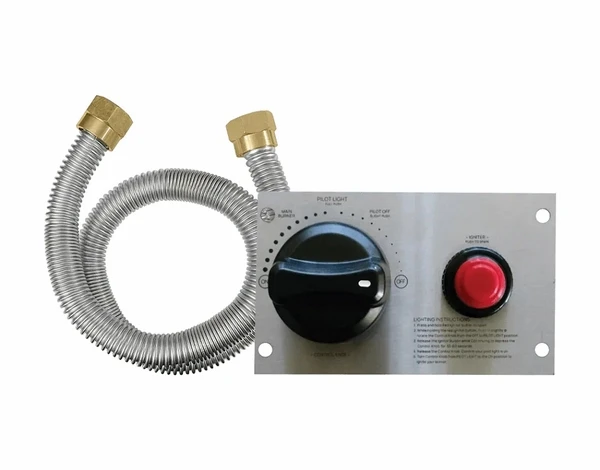

Includes burner, burner pan, flex gas line, pilot assembly, gas valve, mounting plate, and hardware

Technical Specifications

Maximum Natural Gas BTU Output: 95,000 (3610), 120,000 (4810), 160,000 (6010)
Min/Max Natural Gas Inlet Pressure: 5″ / 10.5″ WC
Maximum Propane BTU Output: 115,000 (3610), 150,000 (4810), 175,000 (6010)
Min/Max Propane Inlet Pressure: 10.5″ / 13″ WC
Valve Type: Manual

* Please Note: This system requires 18 square inches of cross ventilation per side.

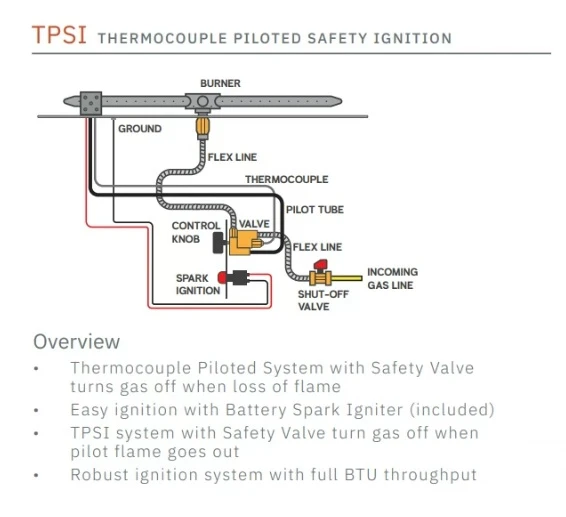

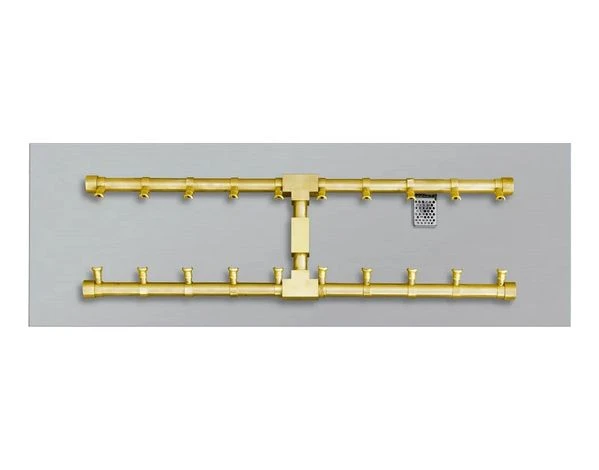

TrueFlame brings its style and expertise to your linear fire pit with the Pro Series Linear Fire Pit Kit. This kit includes a flat fire pit pan and the unique H Burner. This burner features two long arms that evenly distribute propane or natural gas fuel along their entire length for a lively and consistent flame. The unique TPSI system utilizes a thermocouple safety valve that stops the gas flow if the flame has been extinguished, so you won’t have to worry about wasted fuel or a dangerous leak ruining your enjoyment.
